100 Series
H111
COMING SOON!

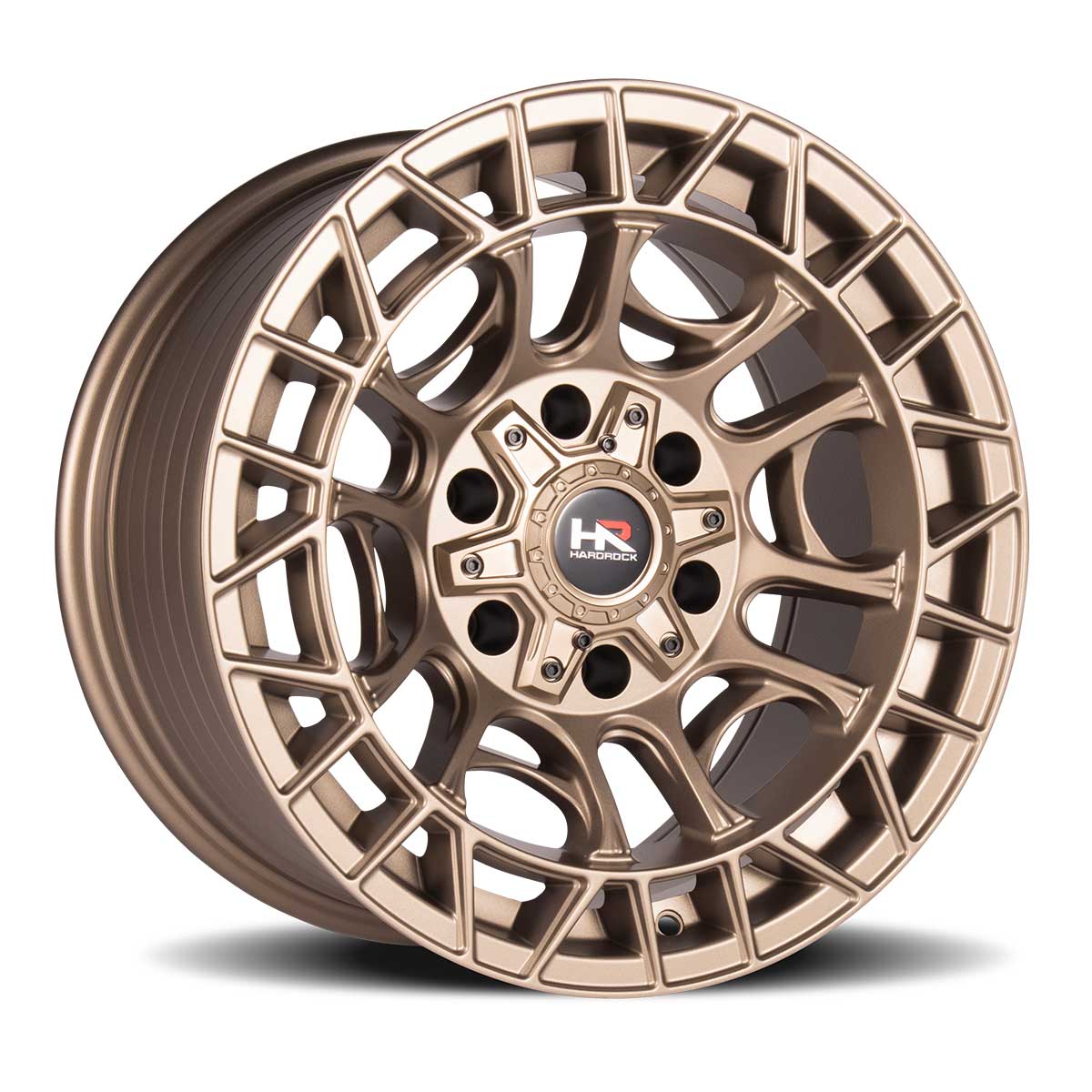

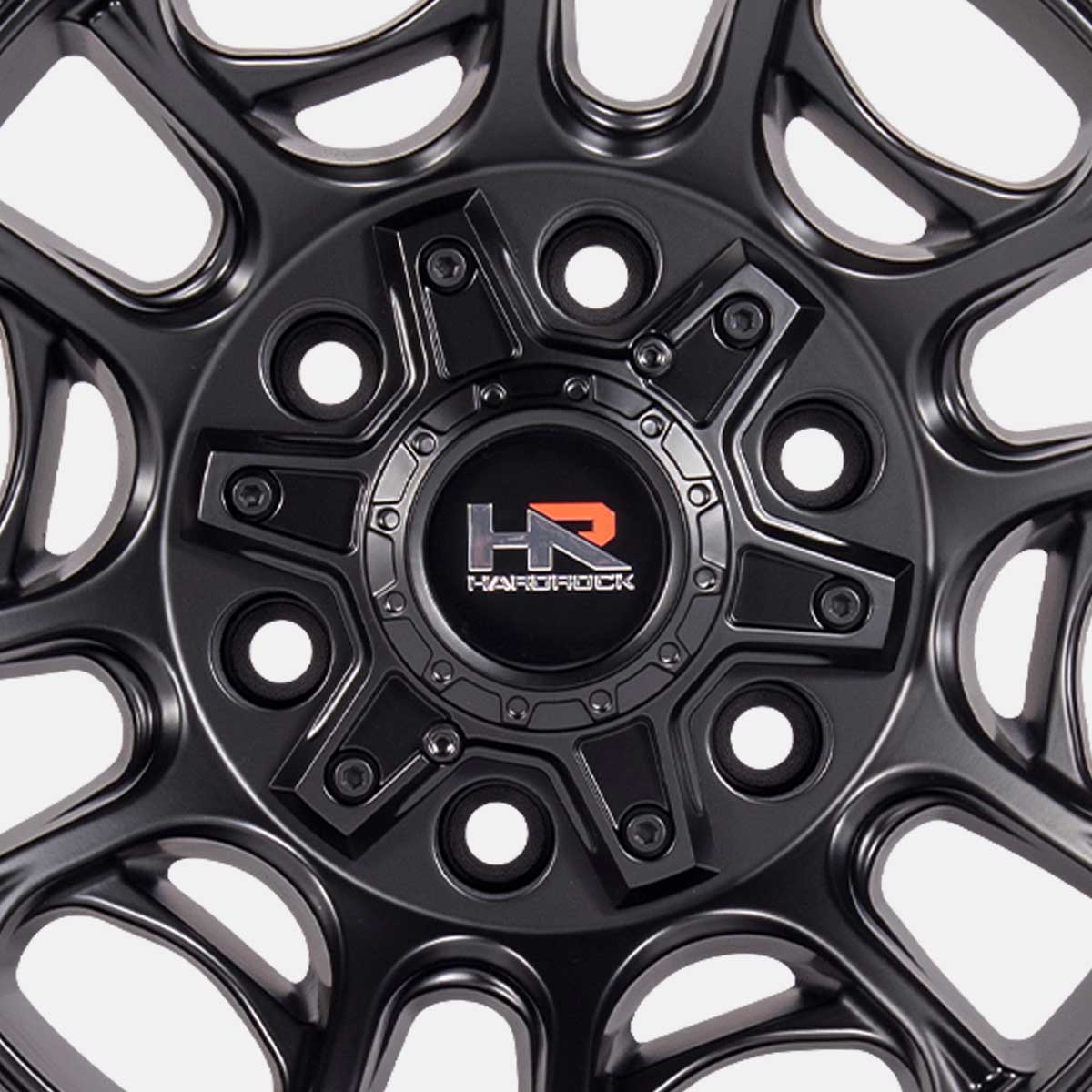

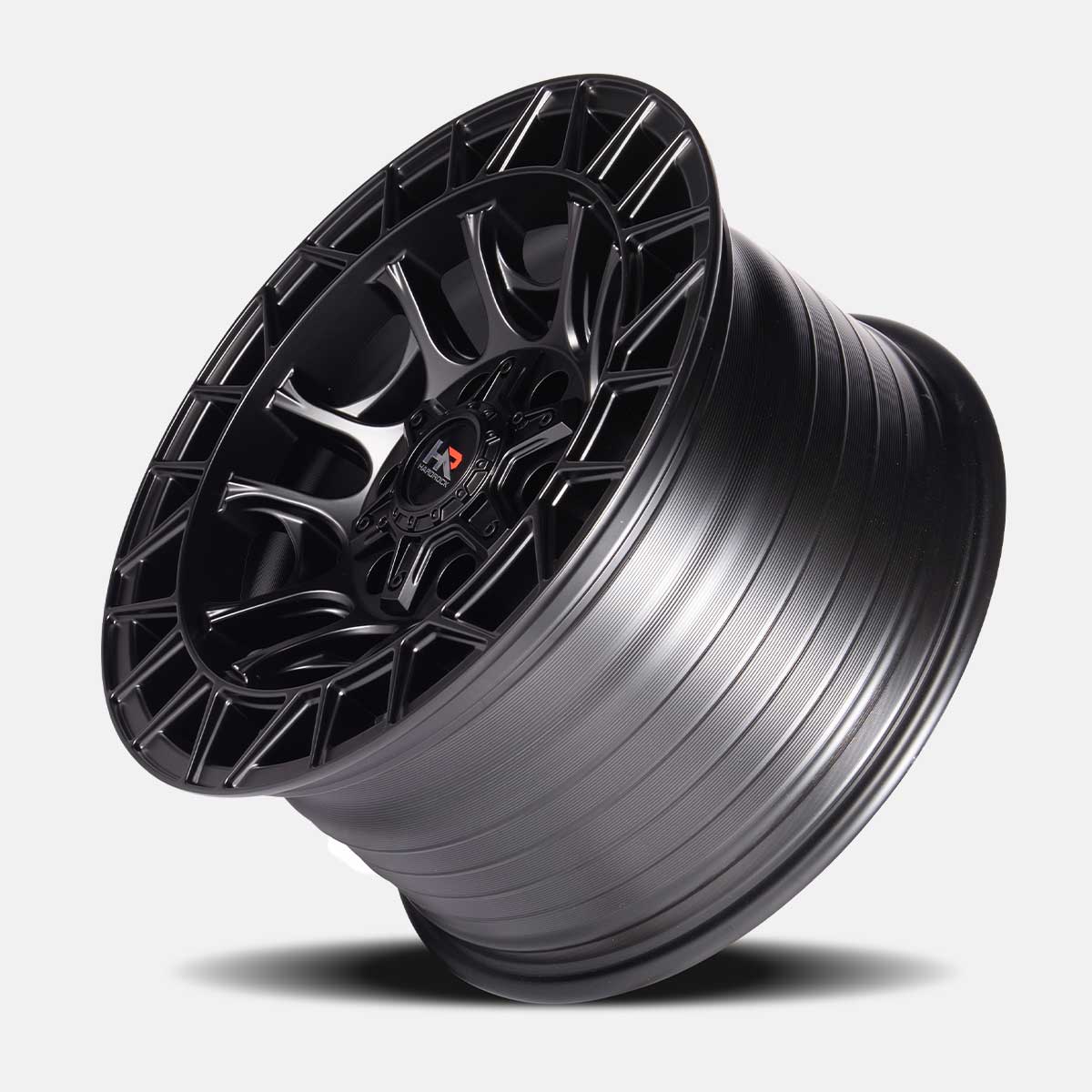

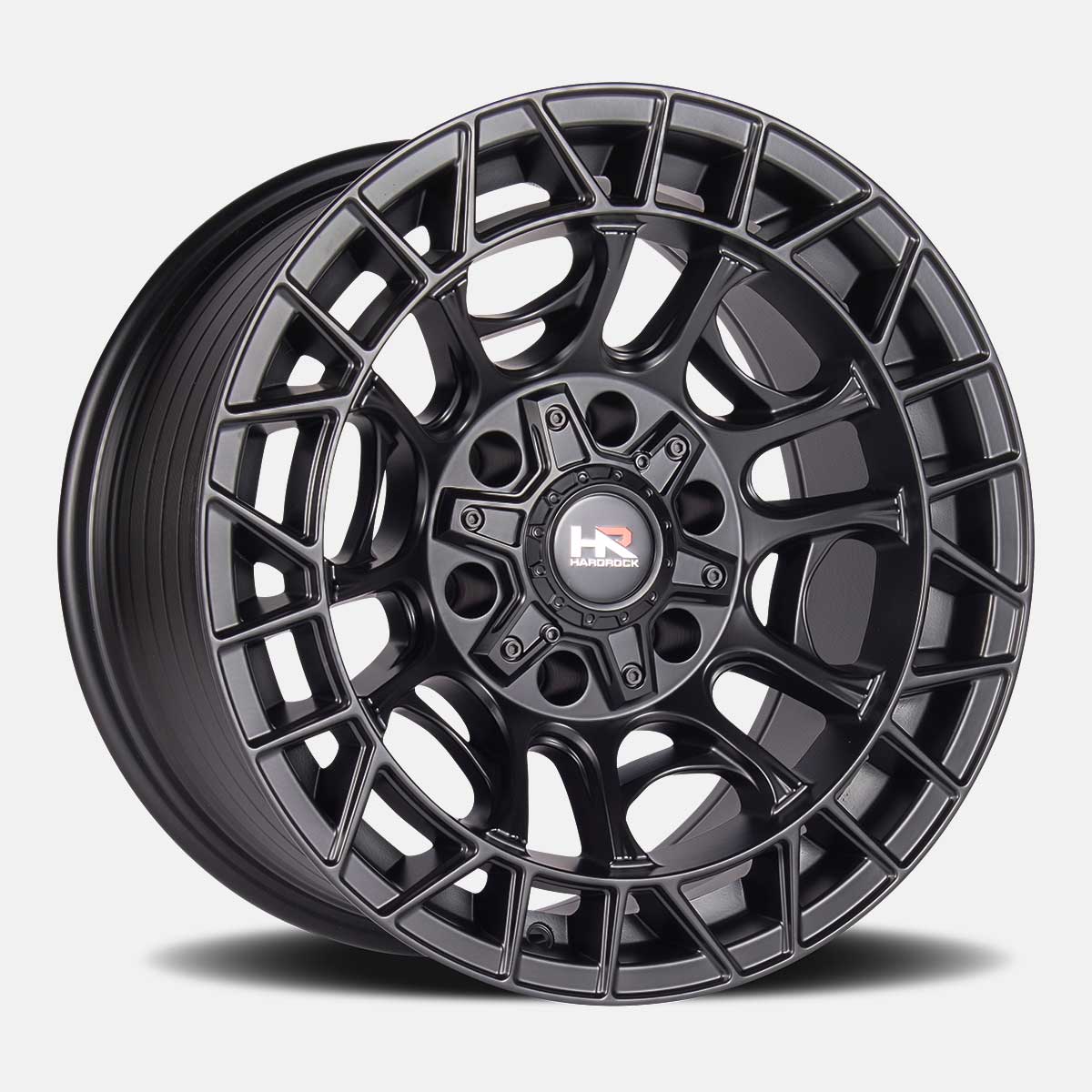

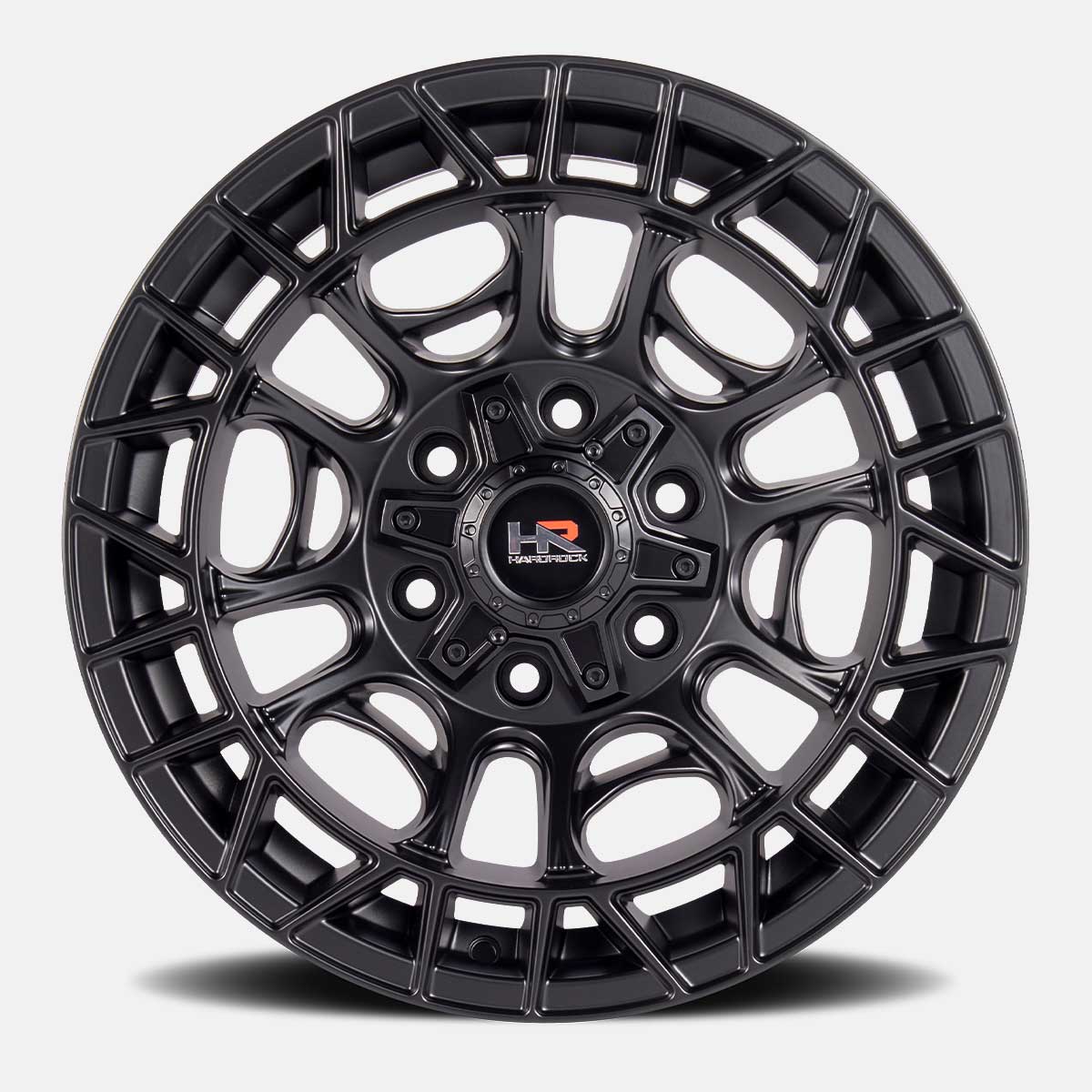

One of the latest additions to the H100 series of off-road wheels is the H111. Featuring an aggressive and modern take on what an off-road wheel should be, the H111 features deep concavity and and integrated aero ring. The H111 is engineered for modern day trail rigs and trucks and is elevated further with a brand new center cap design.
FINISHES
Satin Black
SPECIFICATIONS TABLE
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Backspace | Load (LB) |
|---|---|---|---|---|---|---|---|
| H111-179073001BB | Satin Black | 17x9 | 5x127 | +1mm | 5 | 71.5 | 2500lbs |
| H111-179073001BR | Satin Bronze | 17x9 | 5x127 | +1mm | 5 | 71.5 | 2500lbs |
| H111-179073112BB | Satin Black | 17x9 | 5x127 | -12mm | 4.5 | 71.5 | 2500lbs |
| H111-179073112BR | Satin Bronze | 17x9 | 5x127 | -12mm | 4.5 | 71.5 | 2500lbs |
| H111-179036001BB | Satin Black | 17x9 | 6x135 | +1mm | 5 | 87.1 | 2500lbs |
| H111-179036001BR | Satin Bronze | 17x9 | 6x135 | +1mm | 5 | 87.1 | 2500lbs |
| H111-179036112BB | Satin Black | 17x9 | 6x135 | -12mm | 4.5 | 87.1 | 2500lbs |
| H111-179036112BR | Satin Bronze | 17x9 | 6x135 | -12mm | 4.5 | 87.1 | 2500lbs |
| H111-179083001BB | Satin Black | 17x9 | 6x139.7 | +1mm | 5 | 106.1 | 2500lbs |
| H111-179083001BR | Satin Bronze | 17x9 | 6x139.7 | +1mm | 5 | 106.1 | 2500lbs |
| H111-179083112BB | Satin Black | 17x9 | 6x139.7 | -12mm | 4.5 | 106.1 | 2500lbs |
| H111-179083112BR | Satin Bronze | 17x9 | 6x139.7 | -12mm | 4.5 | 106.1 | 2500lbs |
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Backspace | Load (LB) |
|---|---|---|---|---|---|---|---|
| H111-201073119BB | Satin Black | 20x10 | 5x127 | -19mm | 4.75 | 71.5 | 2500lbs |
| H111-201073119BR | Satin Bronze | 20x10 | 5x127 | -19mm | 4.75 | 71.5 | 2500lbs |
| H111-201036119BB | Satin Black | 20x10 | 6x135 | -19mm | 4.75 | 87.1 | 2500lbs |
| H111-201036119BR | Satin Bronze | 20x10 | 6x135 | -19mm | 4.75 | 87.1 | 2500lbs |
| H111-201083119BB | Satin Black | 20x10 | 6x139.7 | -19mm | 4.75 | 106.1 | 2500lbs |
| H111-201083119BR | Satin Bronze | 20x10 | 6x139.7 | -19mm | 4.75 | 106.1 | 2500lbs |
Will the H111 fit my truck?
Contact our fitment experts to see if the H111 will fit your truck
