100 Series
H113

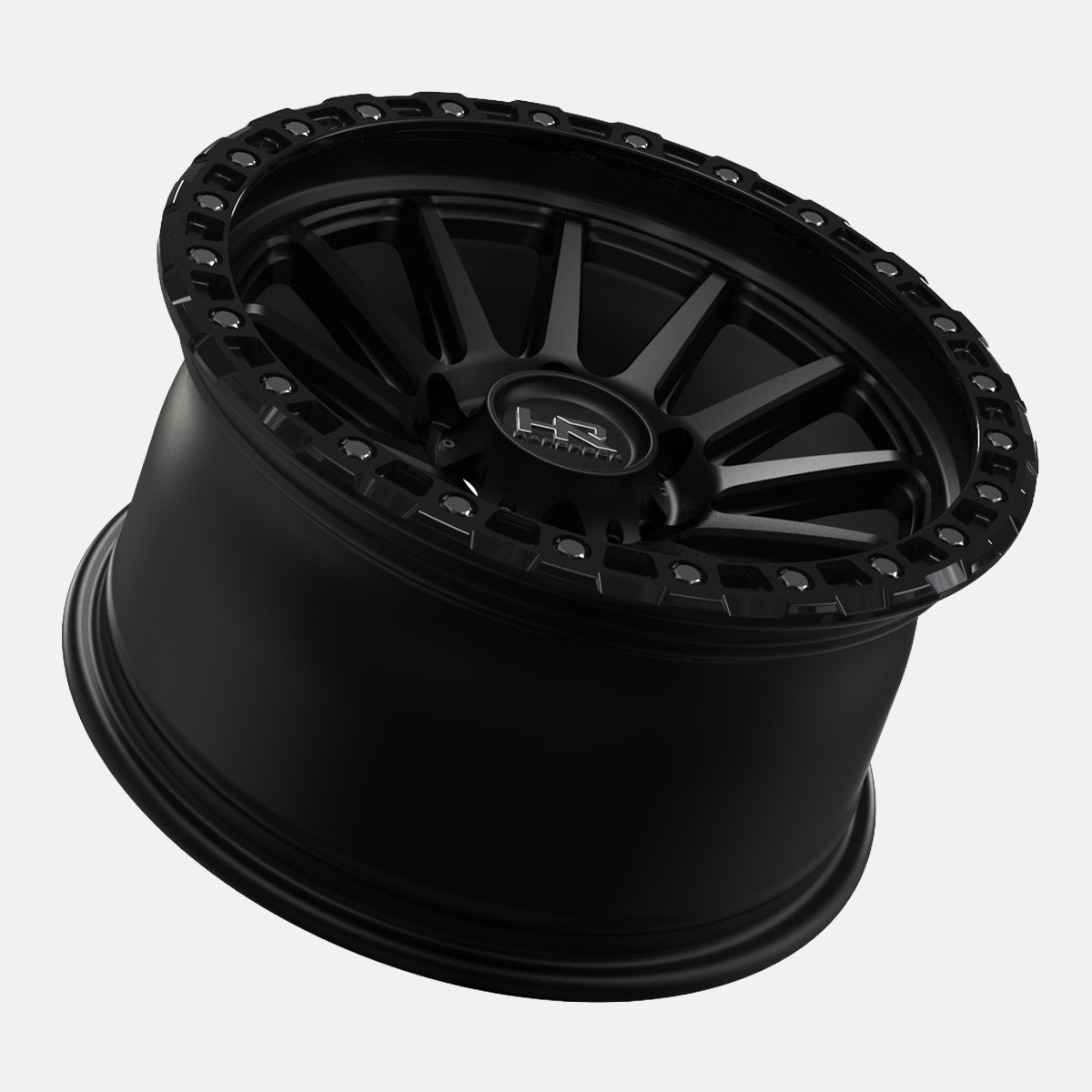

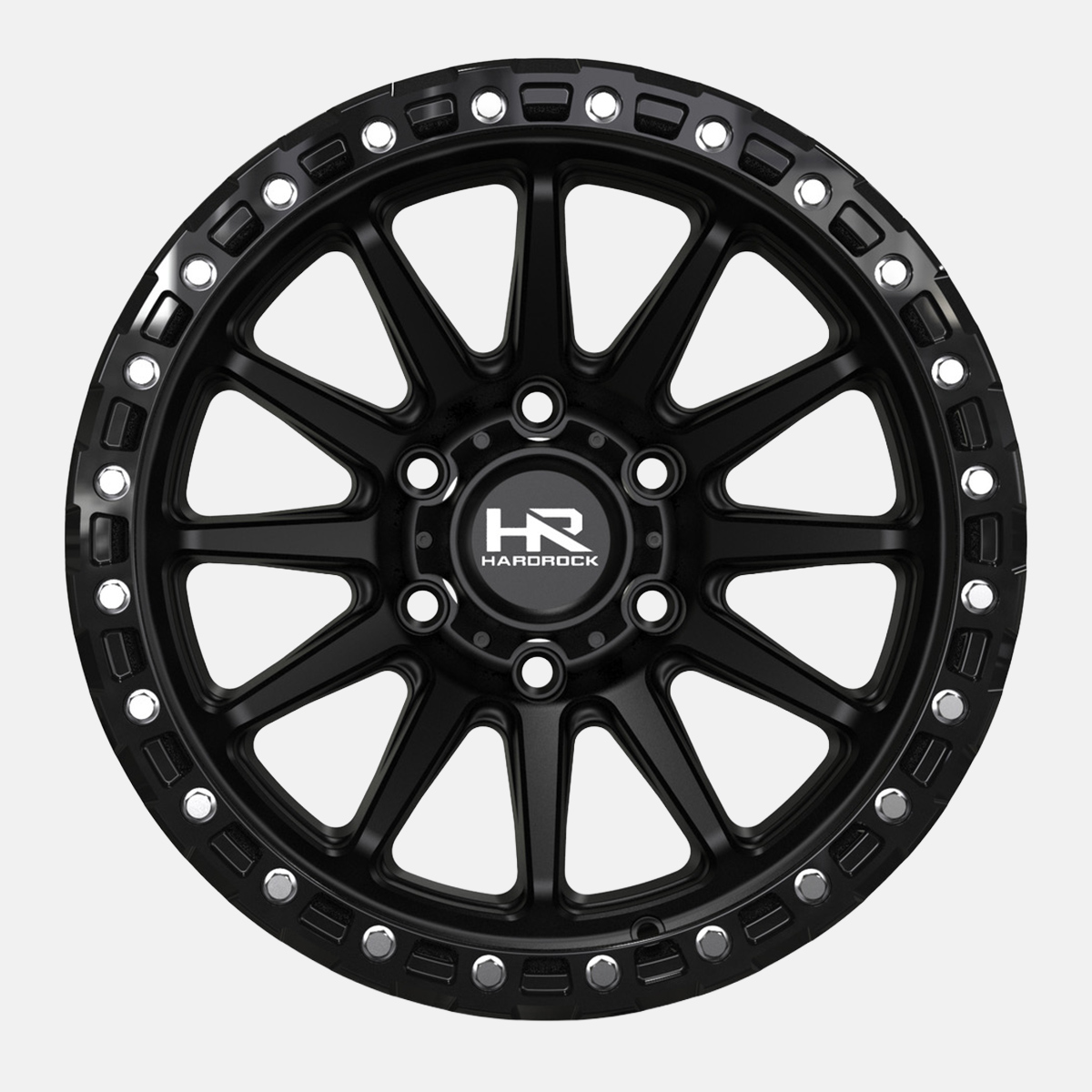

One of the latest additions to the H100 series of off-road wheels is the H113. Featuring an aggressive and modern take on what an off-road wheel should be, the H113 features deep concavity, a simulated beadlock ring, and an aggressive design. The H113 is engineered for modern day trail rigs and trucks.
FINISHES

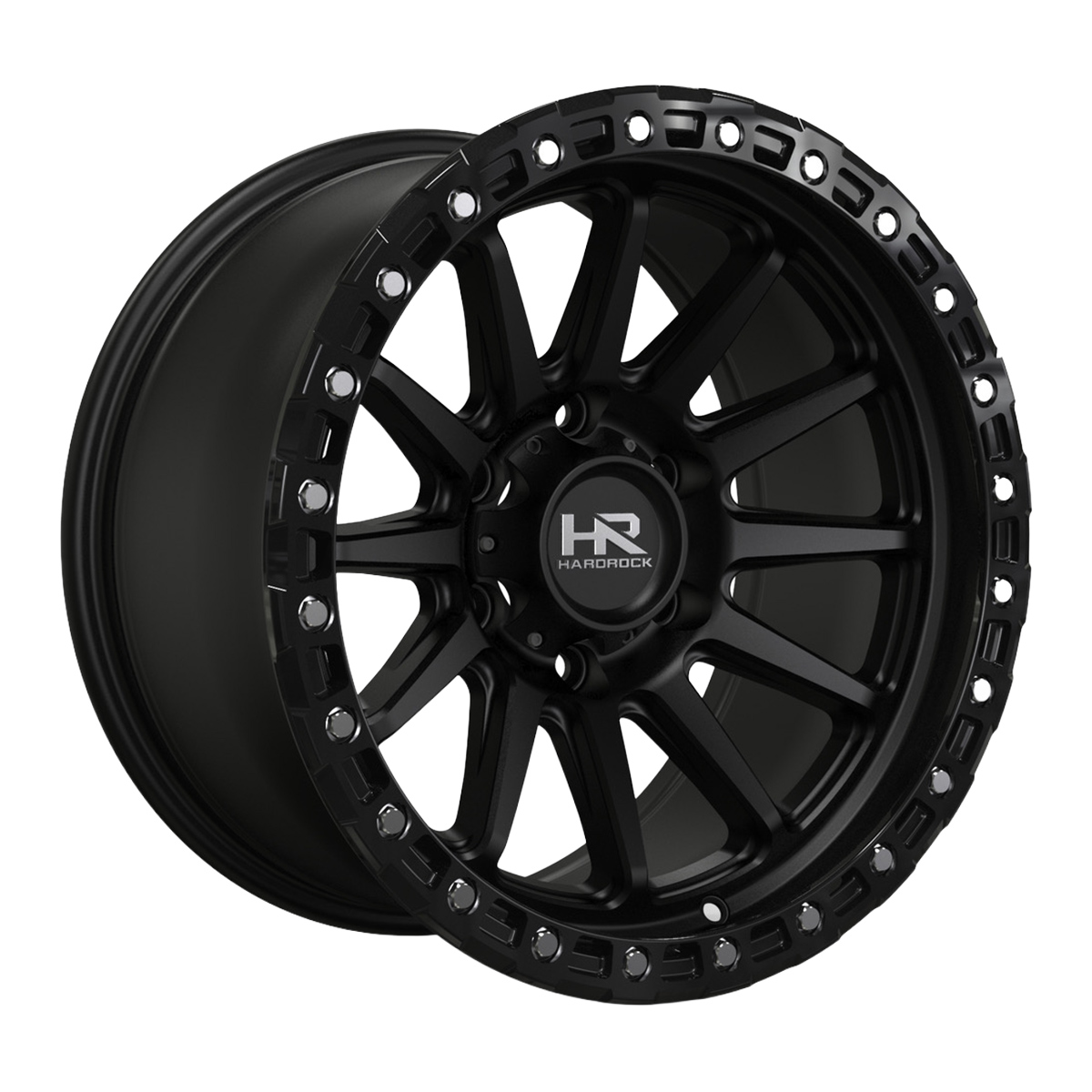

Satin Black

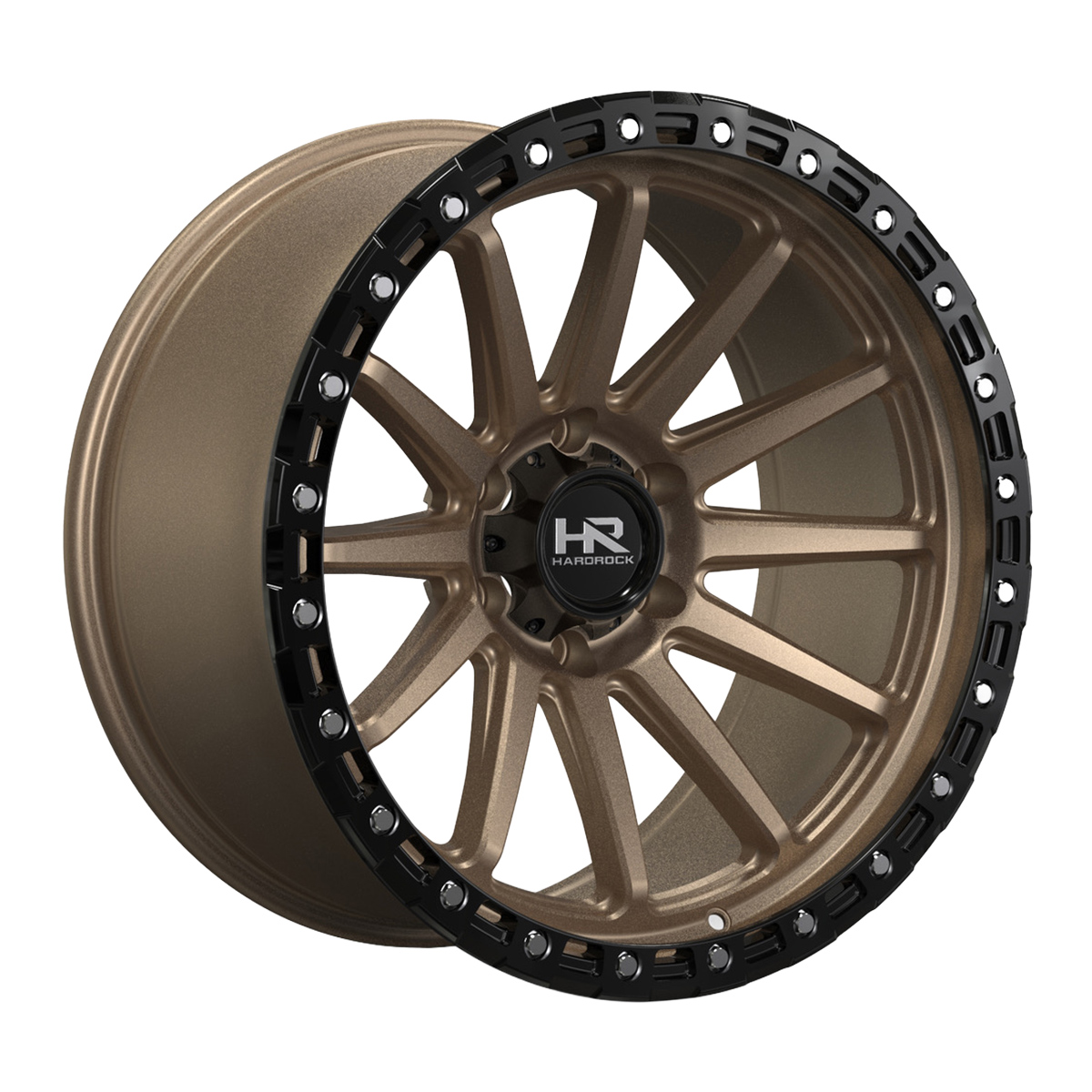

Satin Bronze
SPECIFICATIONS TABLE
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Backspace | Load (LB) |
|---|---|---|---|---|---|---|---|
| H113-179073001BB | Satin Black | 17x9 | 5x127 | +1mm | 71.5mm | 5 | 2500lbs |
| H113-179073001BR | Sating Bronze | 17x9 | 5x127 | +1mm | 71.5mm | 5 | 2500lbs |
| H113-179073112BB | Satin Black | 17x9 | 5x127 | -12mm | 71.5mm | 4.5 | 2500lbs |
| H113-179073112BR | Sating Bronze | 17x9 | 5x127 | -12mm | 71.5mm | 4.5 | 2500lbs |
| H113-179036001BB | Satin Black | 17x9 | 6x135 | +1mm | 87.1mm | 5 | 2500lbs |
| H113-179036001BR | Sating Bronze | 17x9 | 6x135 | +1mm | 87.1mm | 5 | 2500lbs |
| H113-179036112BB | Satin Black | 17x9 | 6x135 | -12mm | 87.1mm | 4.5 | 2500lbs |
| H113-179036112BR | Sating Bronze | 17x9 | 6x135 | -12mm | 87.1mm | 4.5 | 2500lbs |
| H113-179083001BB | Satin Black | 17x9 | 6x139.7 | +1mm | 106.1mm | 5 | 2500lbs |
| H113-179083001BR | Sating Bronze | 17x9 | 6x139.7 | +1mm | 106.1mm | 5 | 2500lbs |
| H113-179083112BB | Satin Black | 17x9 | 6x139.7 | -12mm | 106.1mm | 4.5 | 2500lbs |
| H113-179083112BR | Sating Bronze | 17x9 | 6x139.7 | -12mm | 106.1mm | 4.5 | 2500lbs |
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Backspace | Load (LB) |
|---|---|---|---|---|---|---|---|
| H113-201073119BB | Satin Black | 20x10 | 5x127 | -19mm | 71.5mm | 4.75 | 2500lbs |
| H113-201073119BR | Satin Bronze | 20x10 | 5x127 | -19mm | 71.5mm | 4.75 | 2500lbs |
| H113-201036119BB | Satin Black | 20x10 | 6x135 | -19mm | 87.1mm | 4.75 | 2500lbs |
| H113-201036119BR | Satin Bronze | 20x10 | 6x135 | -19mm | 87.1mm | 4.75 | 2500lbs |
| H113-201083119BB | Satin Black | 20x10 | 6x139.7 | -19mm | 106.1mm | 4.75 | 2500lbs |
| H113-201083119BR | Satin Bronze | 20x10 | 6x139.7 | -19mm | 106.1mm | 4.75 | 2500lbs |
Will the H113 fit my truck?
Contact our fitment experts to see if the H113 will fit your truck
