Xcentric Xposed
H509
COMING SOON!

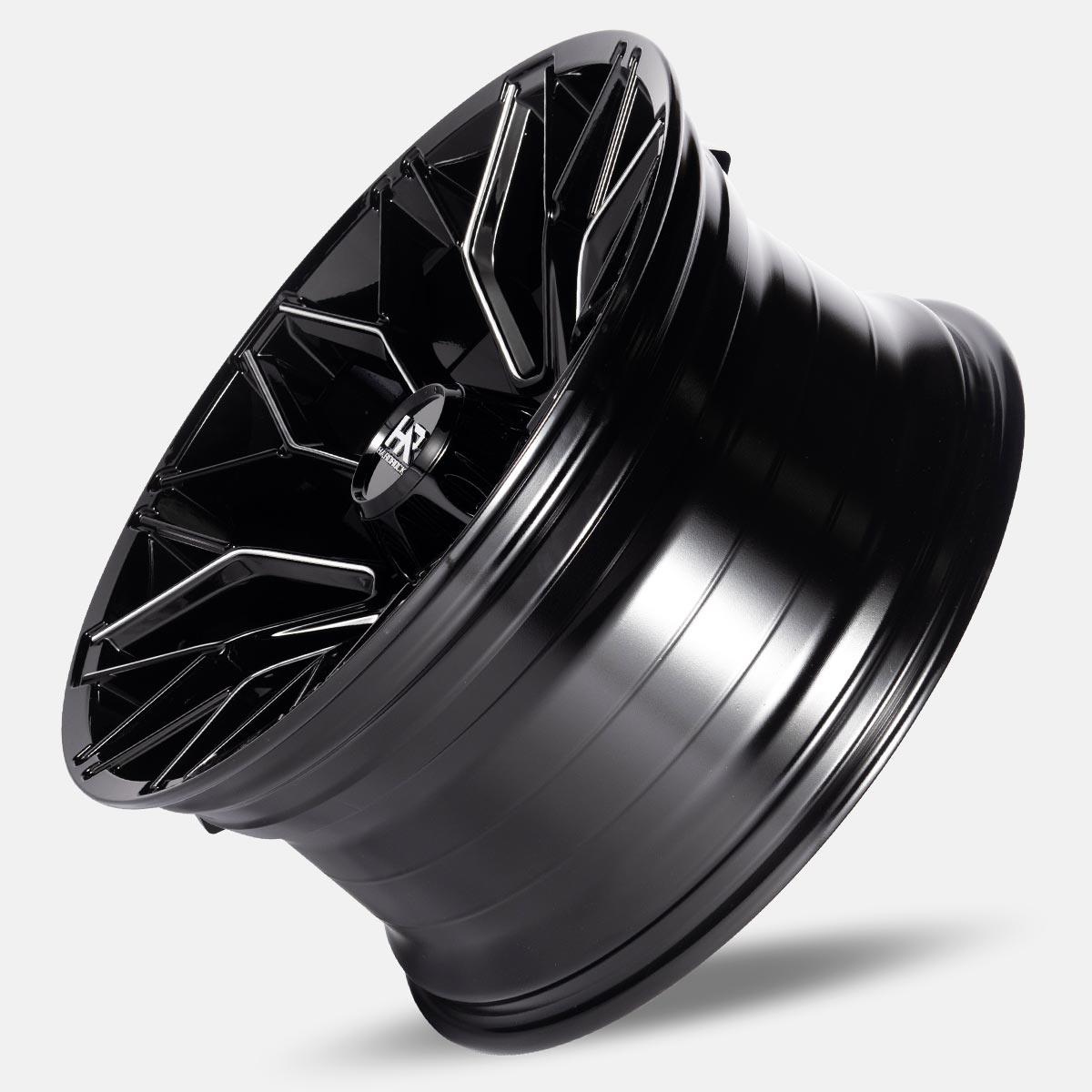

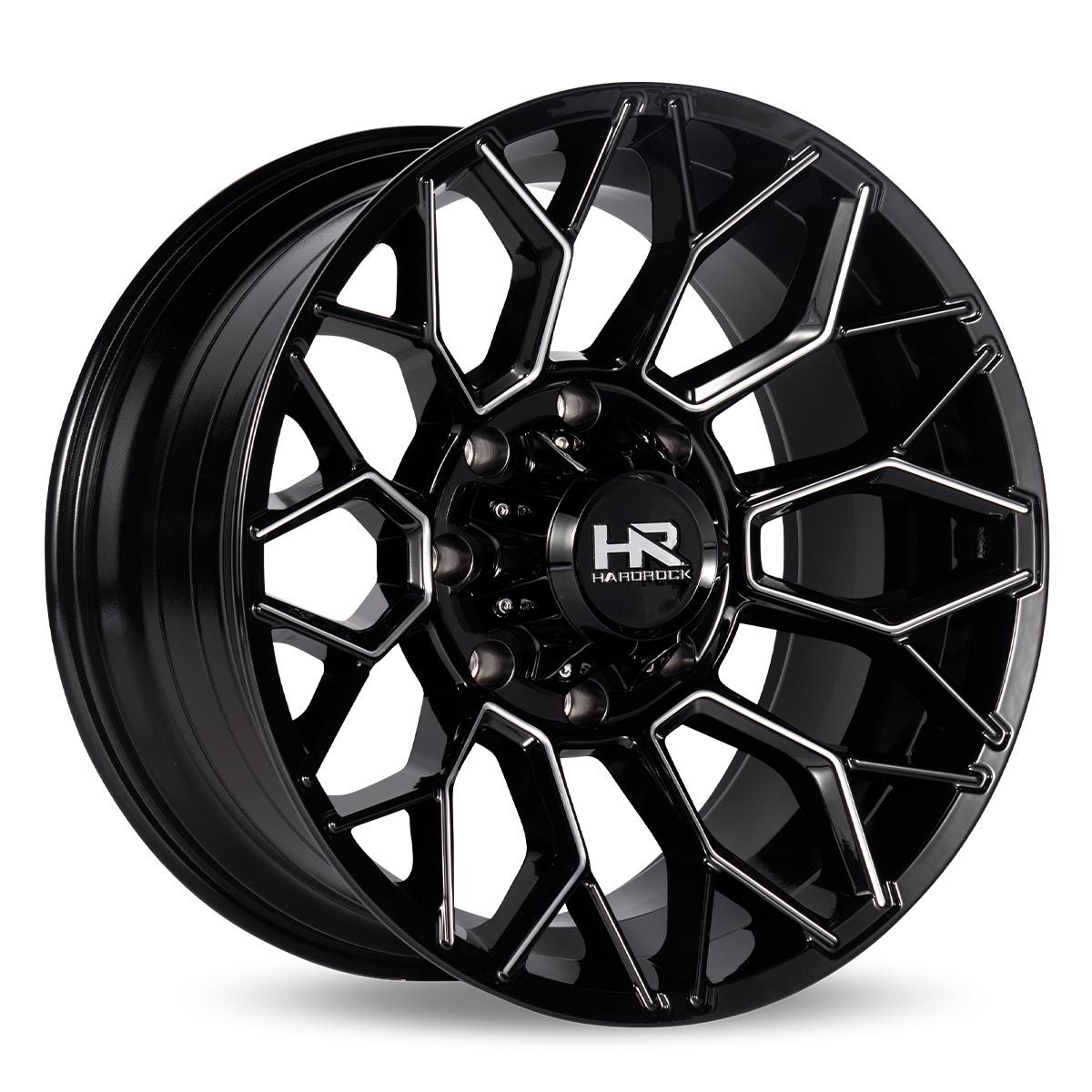

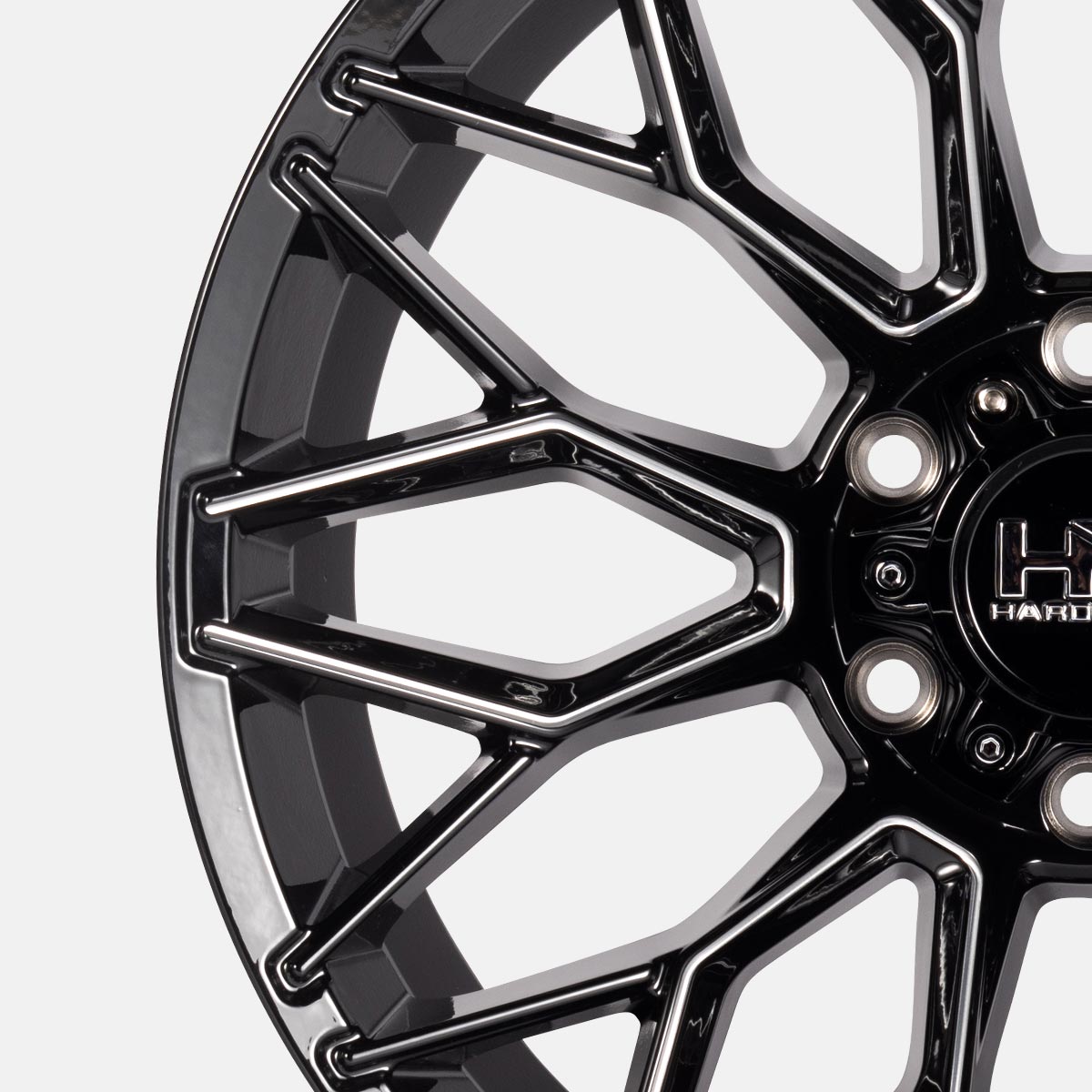

The latest addition to the H500 truck wheel lineup is the H509 Xcentric Xposed. This wheel is a modern take on a simple, yet classic mesh spoke design. The H509 was engineered for modern day trucks and offers a deep concave profile, off-road truck center cap/hub design and two stunning finishing options.
FINISHES
Gloss Black
Milled
SPECIFICATIONS TABLE
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Backspace | Load (LB) |
|---|---|---|---|---|---|---|---|
| H508-201073119BM | Gloss Black Milled | 20x10 | 5x127 | -19mm | 4.75 | 71.5 | 2500lbs |
| H508-201085119BM | Gloss Black Milled | 20x10 | 5x139.7 | -19mm | 4.75 | 87.1 | 2500lbs |
| H508-201036119BM | Gloss Black Milled | 20x10 | 6x135 | -19mm | 4.75 | 87.1 | 2500lbs |
| H508-201083119BM | Gloss Black Milled | 20x10 | 6x139.7 | -19mm | 4.75 | 106.1 | 2500lbs |
| H508-201081119BM | Gloss Black Milled | 20x10 | 8x165.1 | -19mm | 4.75 | 125.2 | 3640lbs |
| H508-201070119BM | Gloss Black Milled | 20x10 | 8x170 | -19mm | 4.75 | 125.2 | 3640lbs |
| H508-201078119BM | Gloss Black Milled | 20x10 | 8x180 | -19mm | 4.75 | 124.3 | 3640lbs |
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Backspace | Load (LB) |
|---|---|---|---|---|---|---|---|
| H508-221273151BM | Gloss Black Milled | 22x12 | 5x127 | -51mm | 4.5 | 71.5 | 2500lbs |
| H508-221285151BM | Gloss Black Milled | 22x12 | 5x139.7 | -51mm | 4.5 | 87.1 | 2500lbs |
| H508-221236151BM | Gloss Black Milled | 22x12 | 6x135 | -51mm | 4.5 | 87.1 | 2500lbs |
| H508-221283151BM | Gloss Black Milled | 22x12 | 6x139.7 | -51mm | 4.5 | 106.1 | 2500lbs |
| H508-221281151BM | Gloss Black Milled | 22x12 | 8x165.1 | -51mm | 4.5 | 125.2 | 3640lbs |
| H508-221270151BM | Gloss Black Milled | 22x12 | 8x170 | -51mm | 4.5 | 125.2 | 3640lbs |
| H508-221278151BM | Gloss Black Milled | 22x12 | 8x180 | -51mm | 4.5 | 124.3 | 3640lbs |
Will the H509 fit my truck?
Contact our fitment experts to see if the H509 will fit your truck
