100 Series
H114

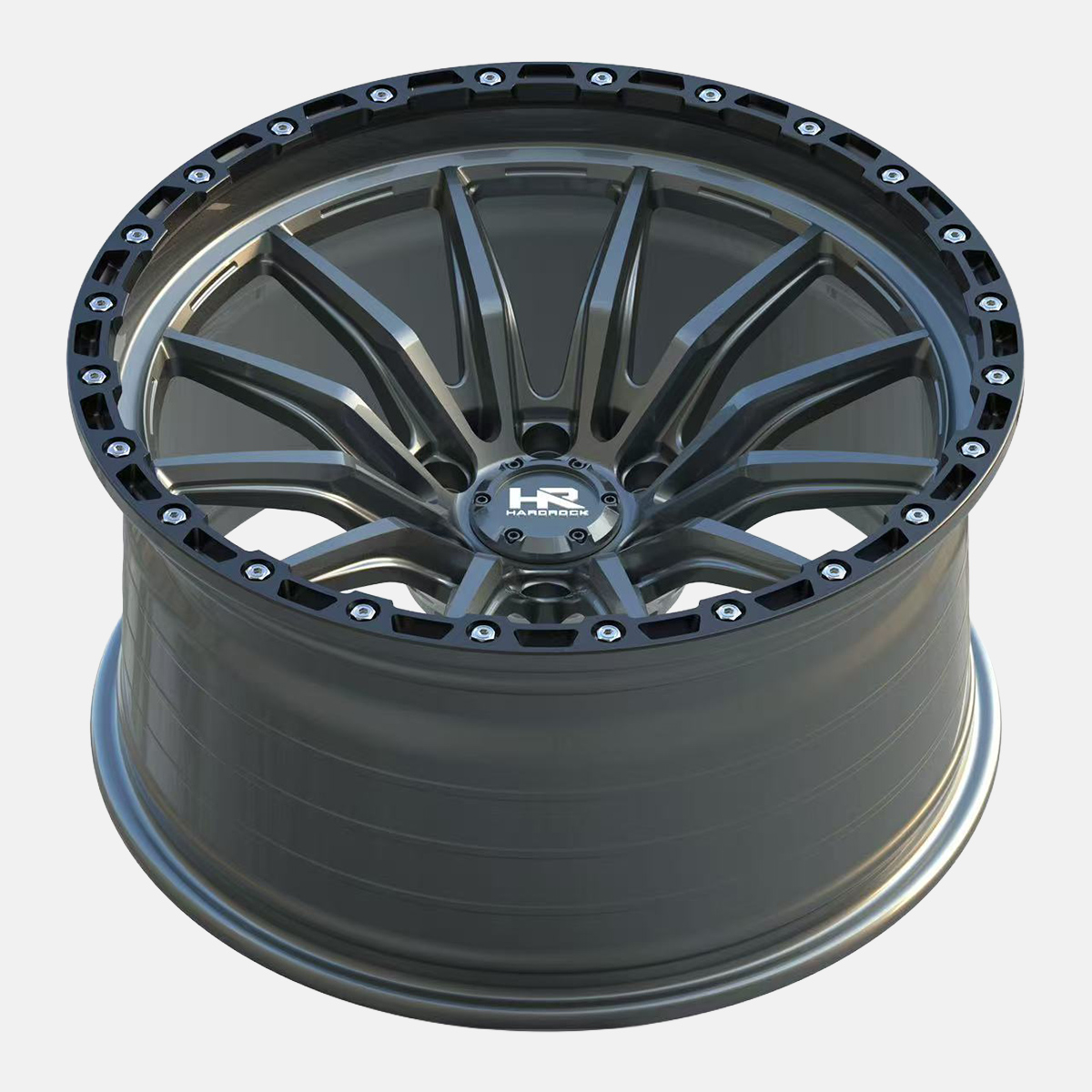

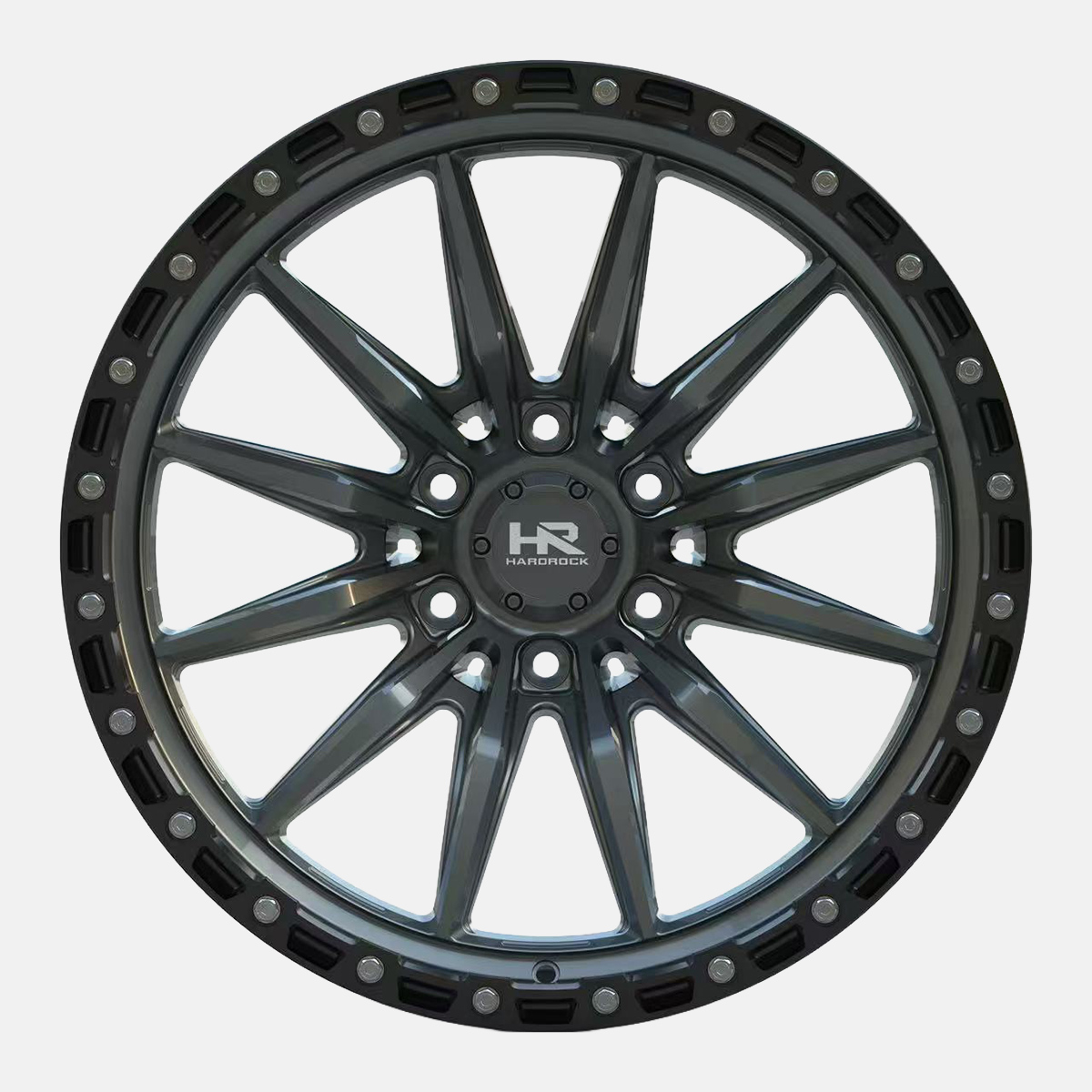

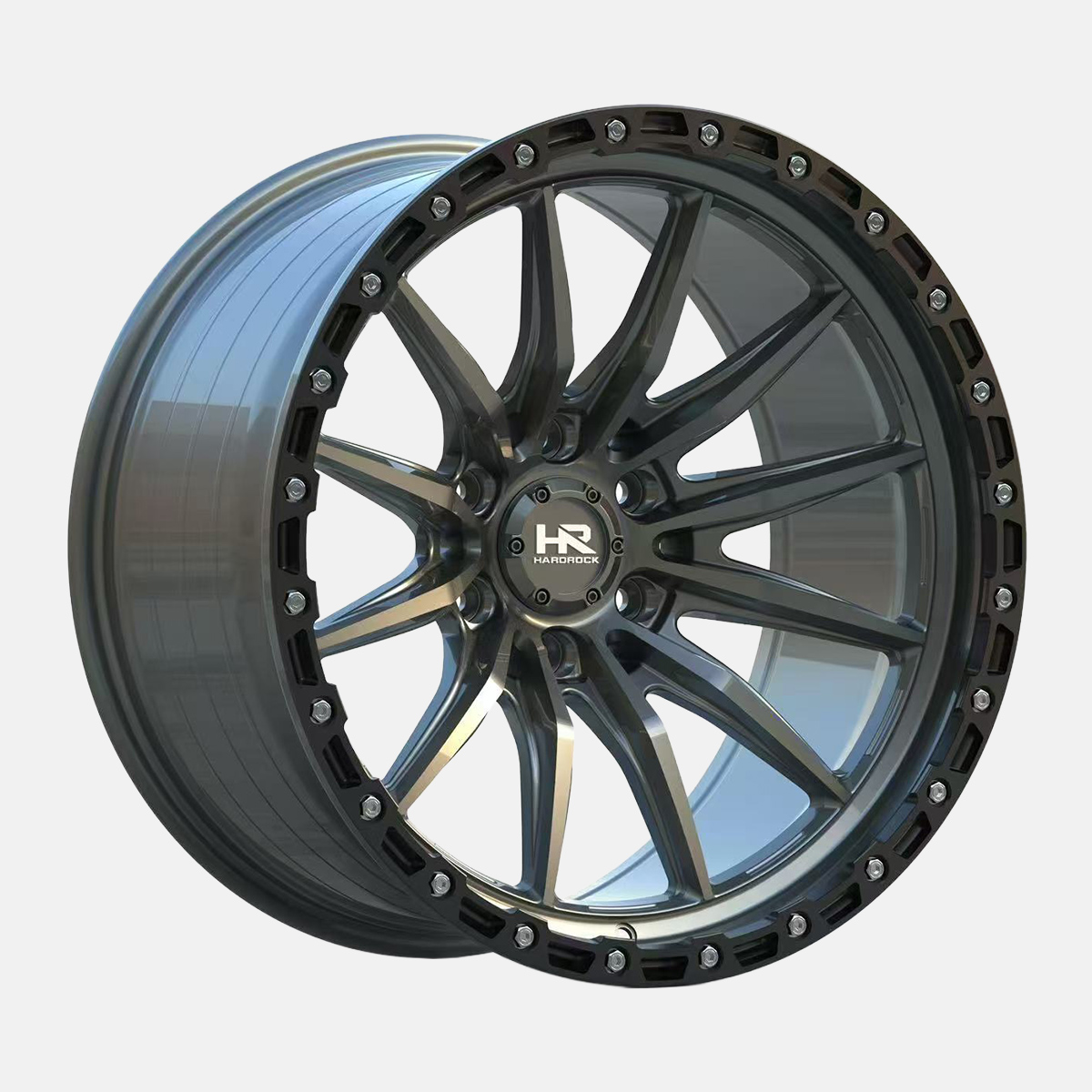

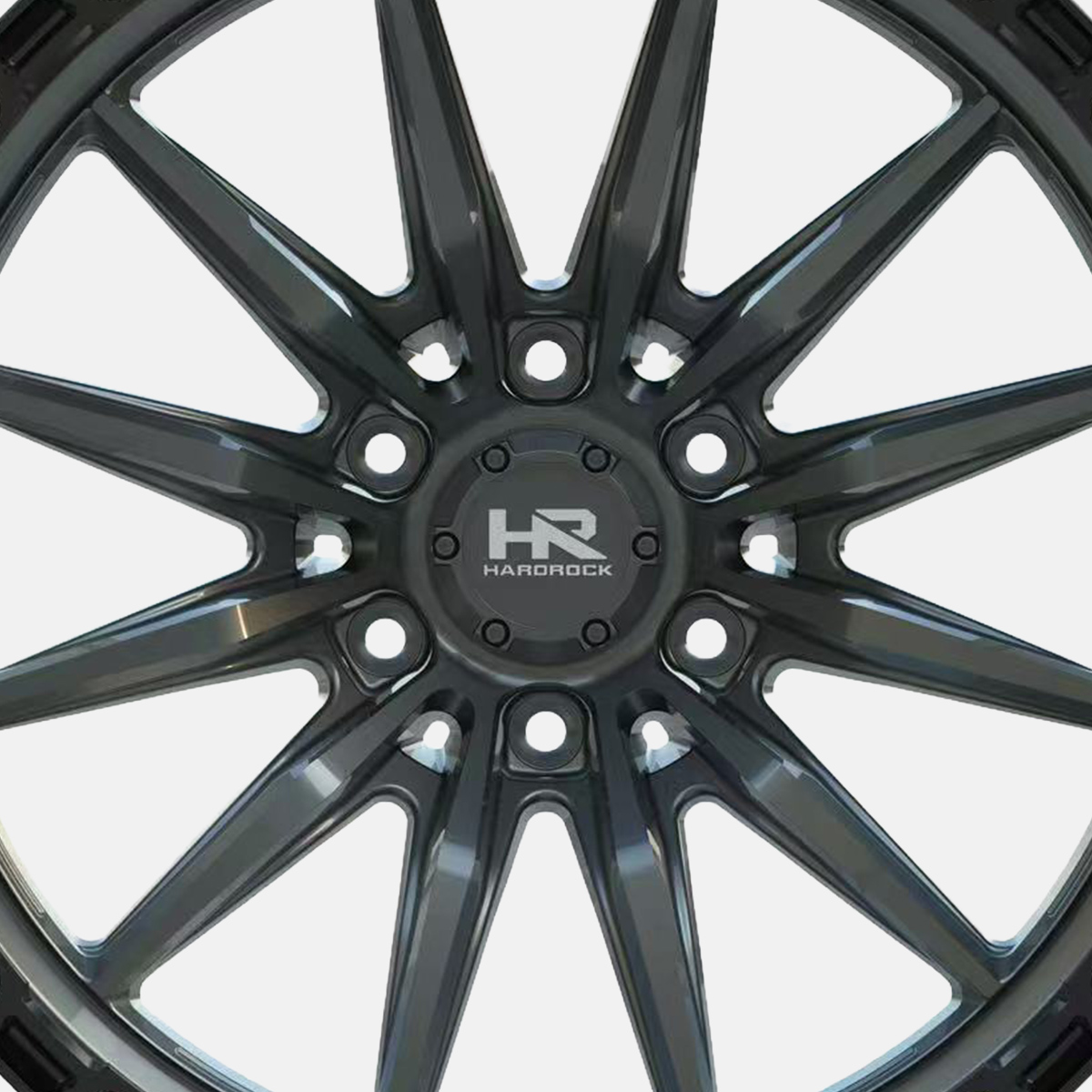

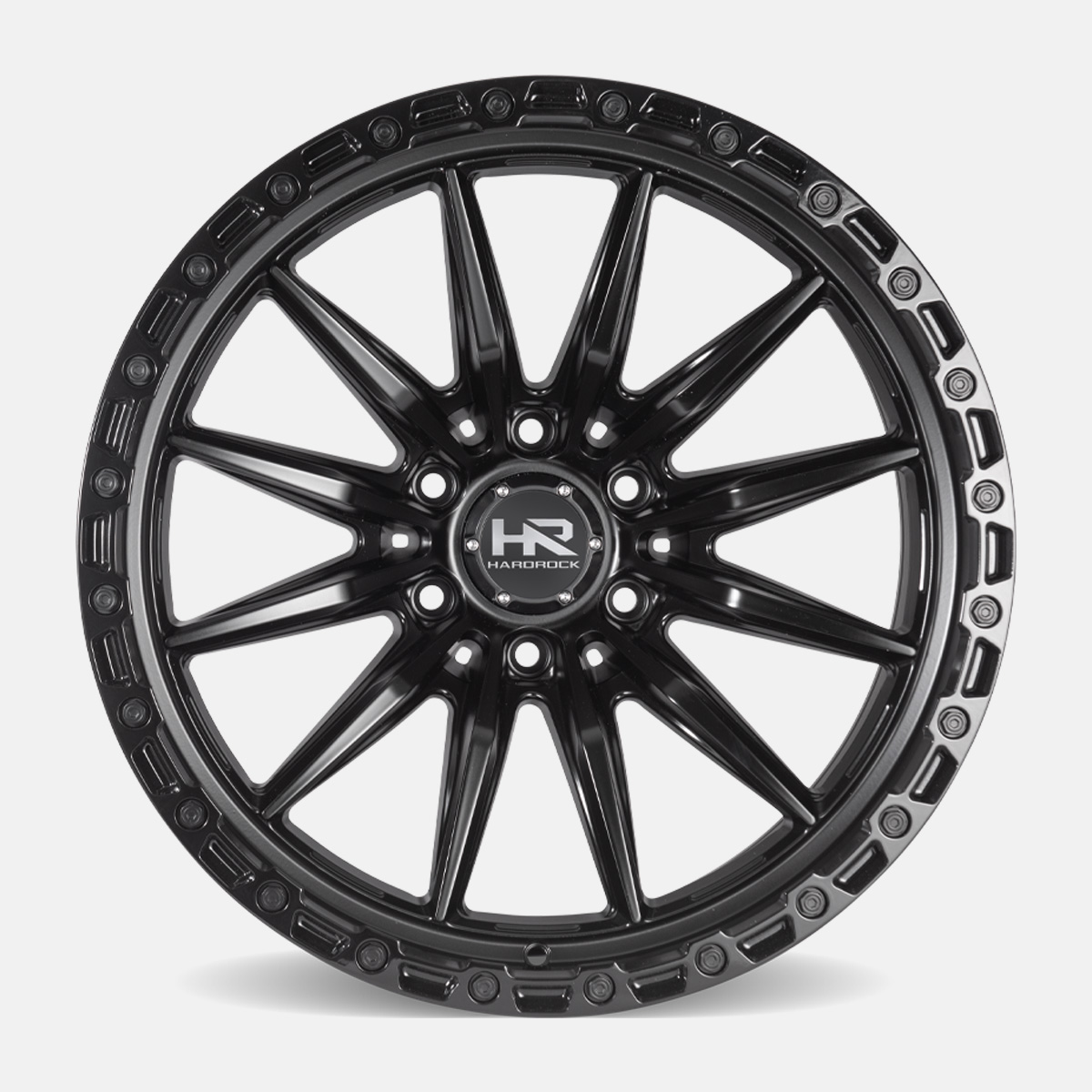

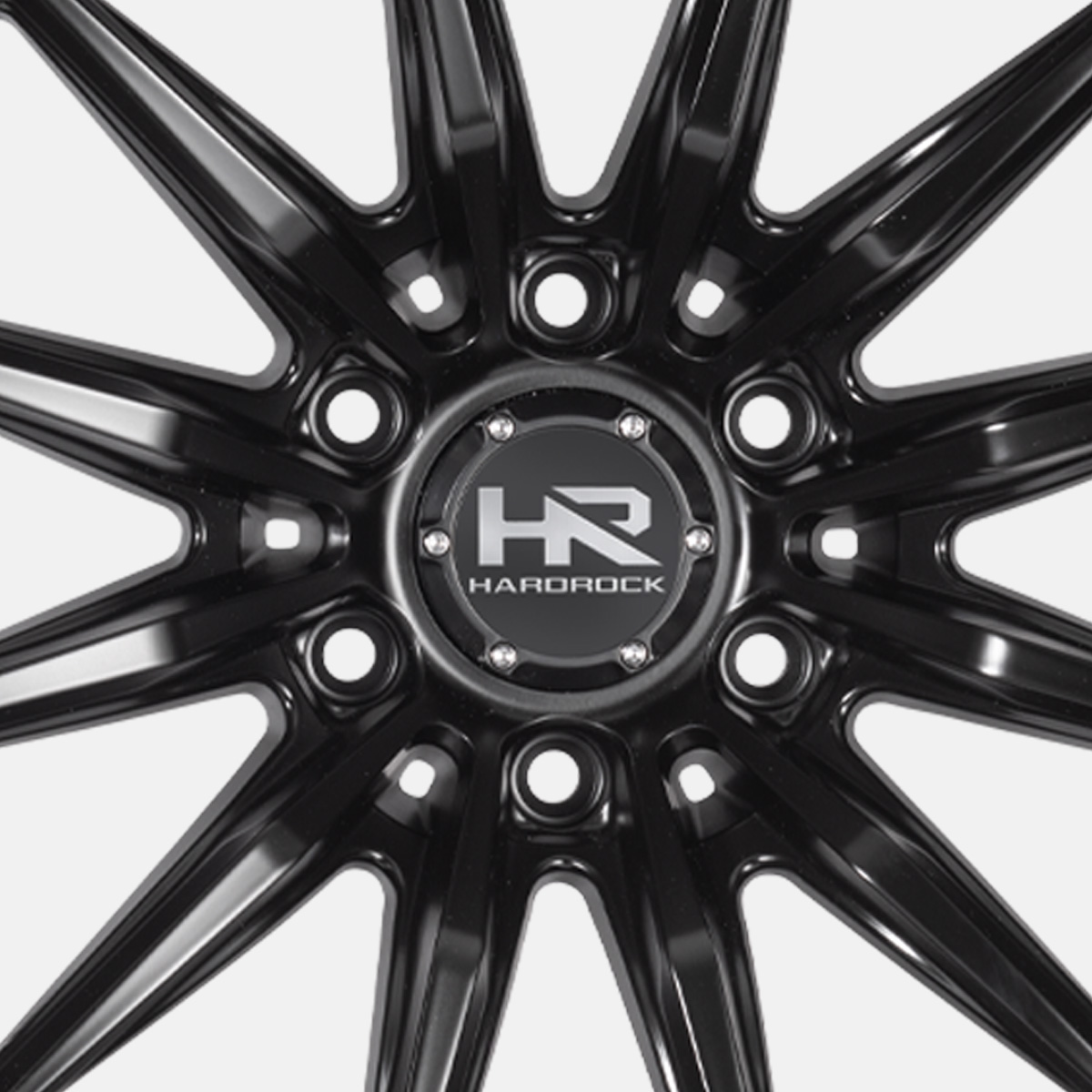

One of the latest additions to the H100 series of off-road wheels is the H114. Featuring an aggressive and modern take on what an off-road wheel should be, the H114 features deep concavity, a simulated beadlock ring, and an aggressive design. The H114 is engineered for modern day trail rigs and trucks.
FINISHES

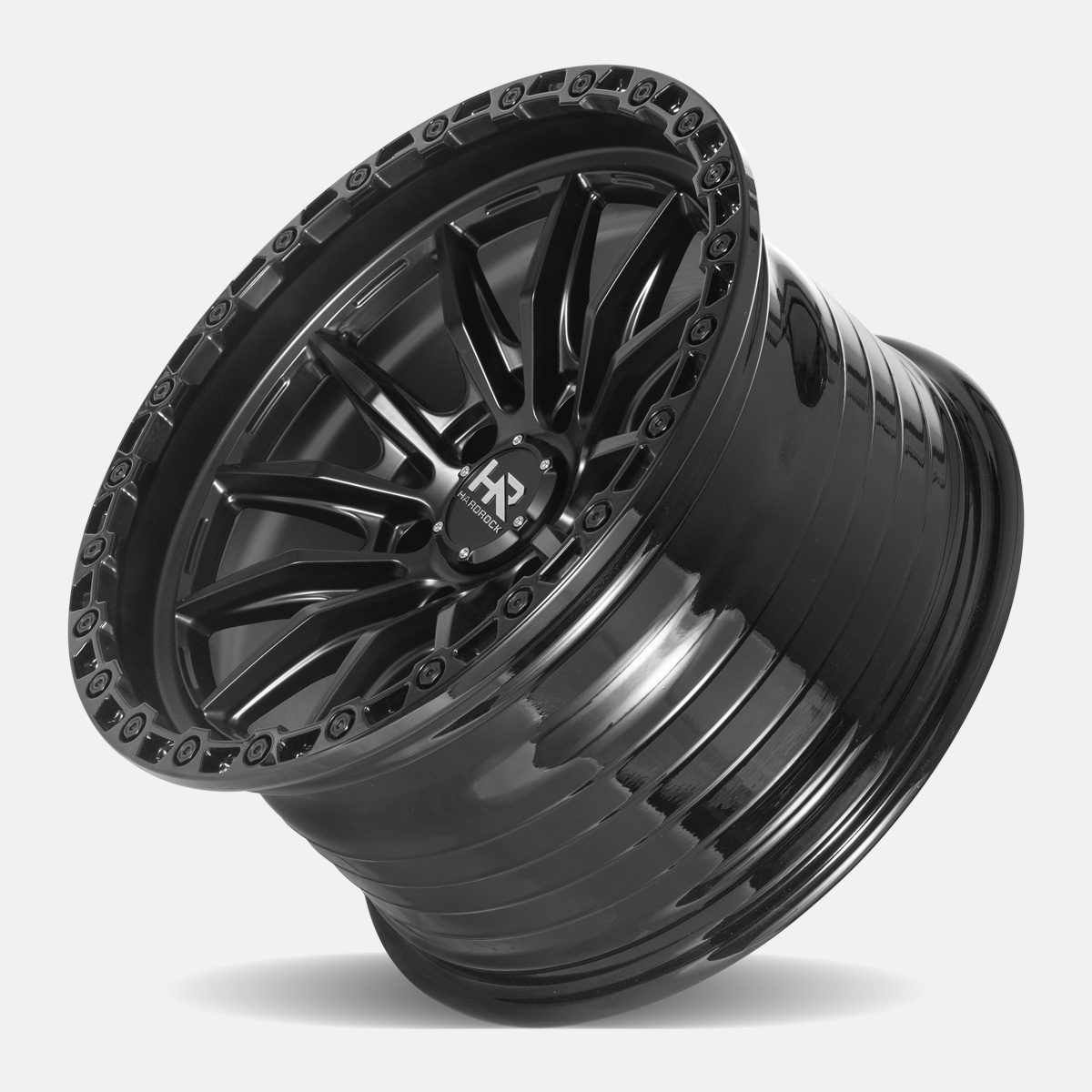

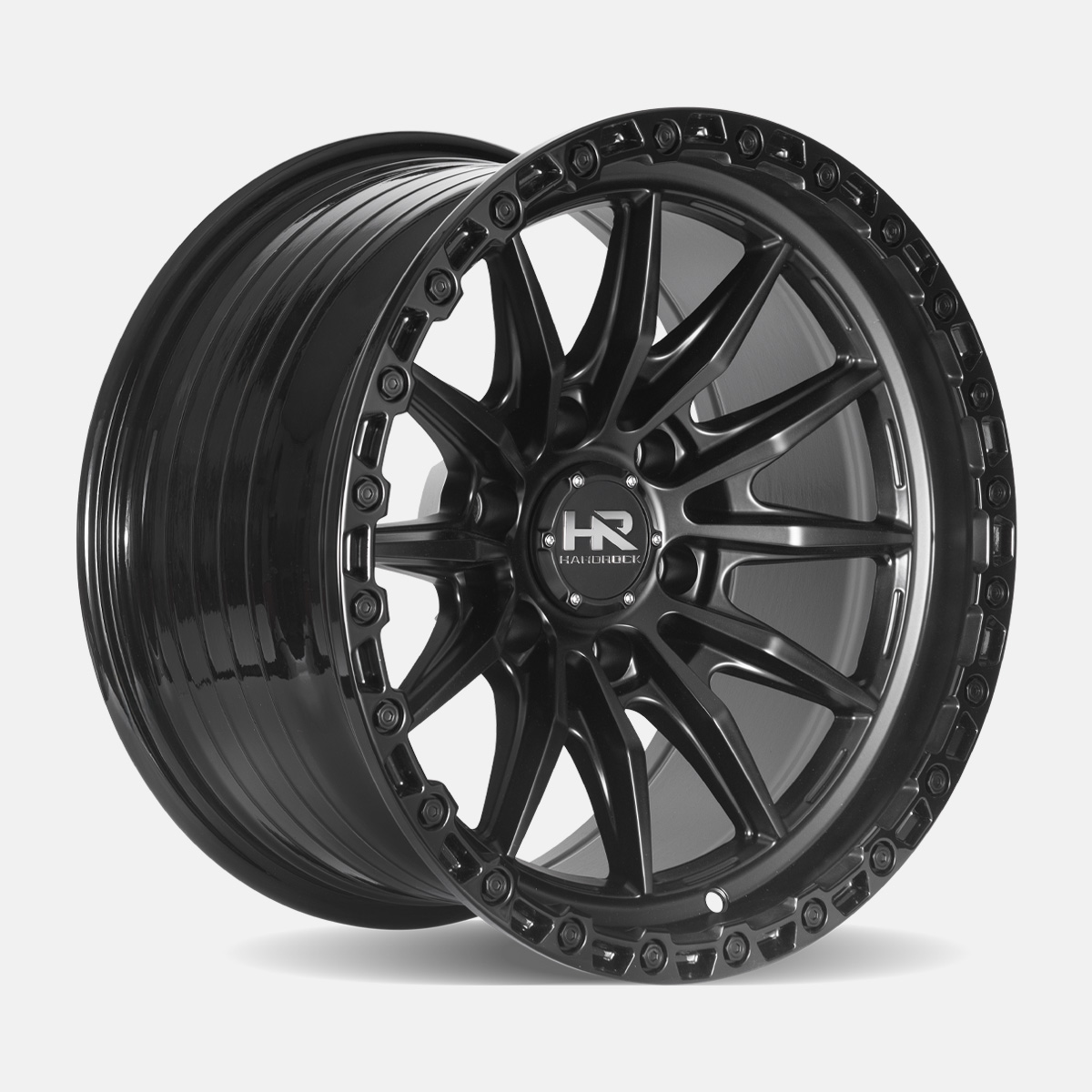

Satin Black

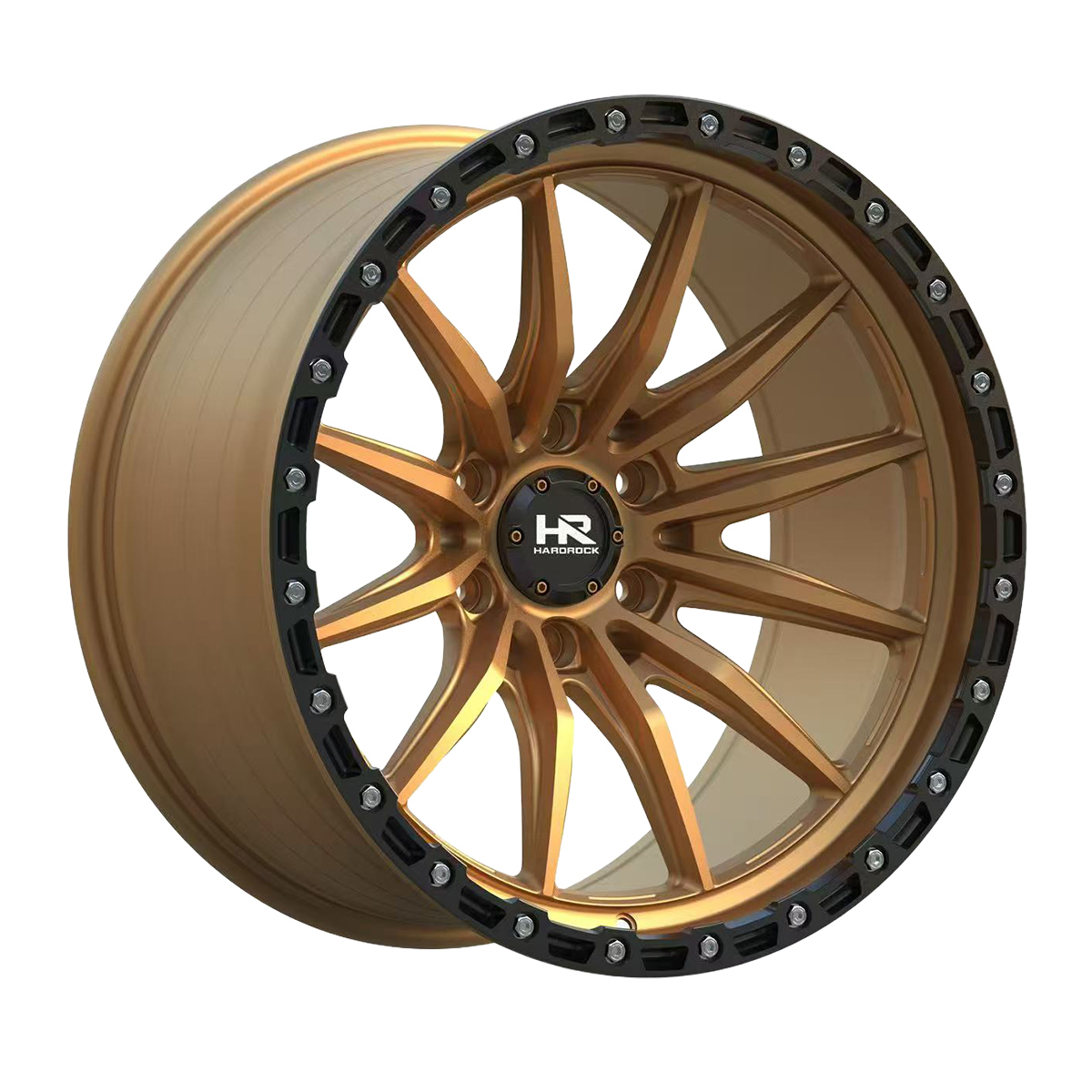

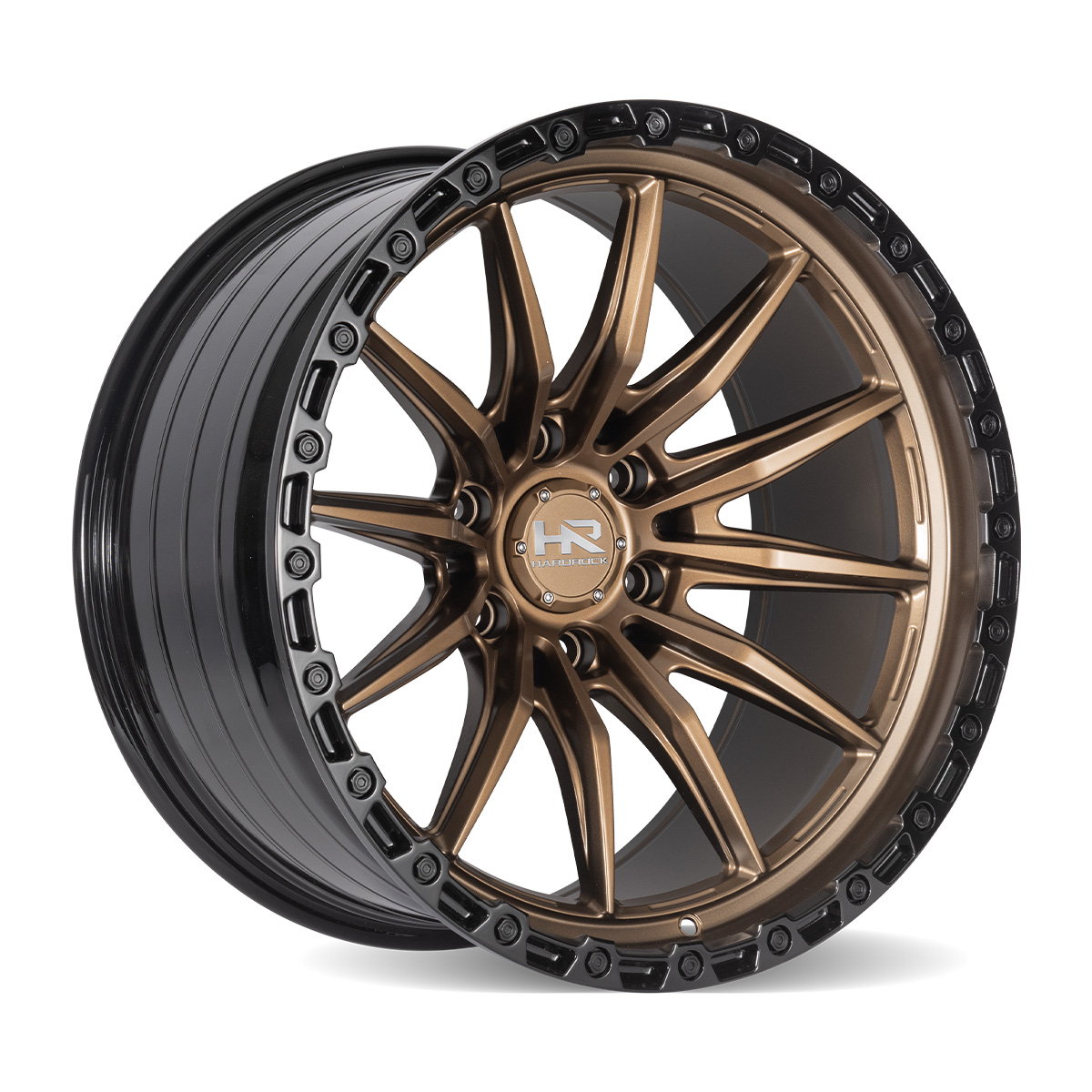

Satin Bronze
SPECIFICATIONS TABLE
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Backspace | Load (LB) | Max Tire (IN) |
|---|---|---|---|---|---|---|---|---|
| H114-179036001BB | Satin Black | 17x9 | 6x135 | +1mm | 87.1mm | 5 | 2500lbs | 1017mm |
| H114-179036001BR | Satin Bronze | 17x9 | 6x135 | +1mm | 87.1mm | 5 | 2500lbs | 1017mm |
| H114-179036112BB | Satin Black | 17x9 | 6x135 | -12mm | 87.1mm | 4.5 | 2500lbs | 1017mm |
| H114-179036112BR | Satin Bronze | 17x9 | 6x135 | -12mm | 87.1mm | 4.5 | 2500lbs | 1017mm |
| H114-179083001BB | Satin Black | 17x9 | 6x139.7 | +1mm | 106.1mm | 5 | 2500lbs | 1017mm |
| H114-179083001BR | Satin Bronze | 17x9 | 6x139.7 | +1mm | 106.1mm | 5 | 2500lbs | 1017mm |
| H114-179083112BB | Satin Black | 17x9 | 6x139.7 | -12mm | 106.1mm | 4.5 | 2500lbs | 1017mm |
| H114-179083112BR | Satin Bronze | 17x9 | 6x139.7 | -12mm | 106.1mm | 4.5 | 2500lbs | 1017mm |
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Backspace | Load (LB) | Max Tire (IN) |
|---|---|---|---|---|---|---|---|---|
| H114-201036119BB | Satin Black | 20x10 | 6x135 | -19mm | 87.1mm | 4.75 | 2500lbs | 1017mm |
| H114-201036119BR | Satin Bronze | 20x10 | 6x135 | -19mm | 87.1mm | 4.75 | 2500lbs | 1017mm |
| H114-201083119BB | Satin Black | 20x10 | 6x139.7 | -19mm | 106.1mm | 4.75 | 2500lbs | 1017mm |
| H114-201083119BR | Satin Bronze | 20x10 | 6x139.7 | -19mm | 106.1mm | 4.75 | 2500lbs | 1017mm |
Will the H114 fit my truck?
Contact our fitment experts to see if the H113 will fit your truck
